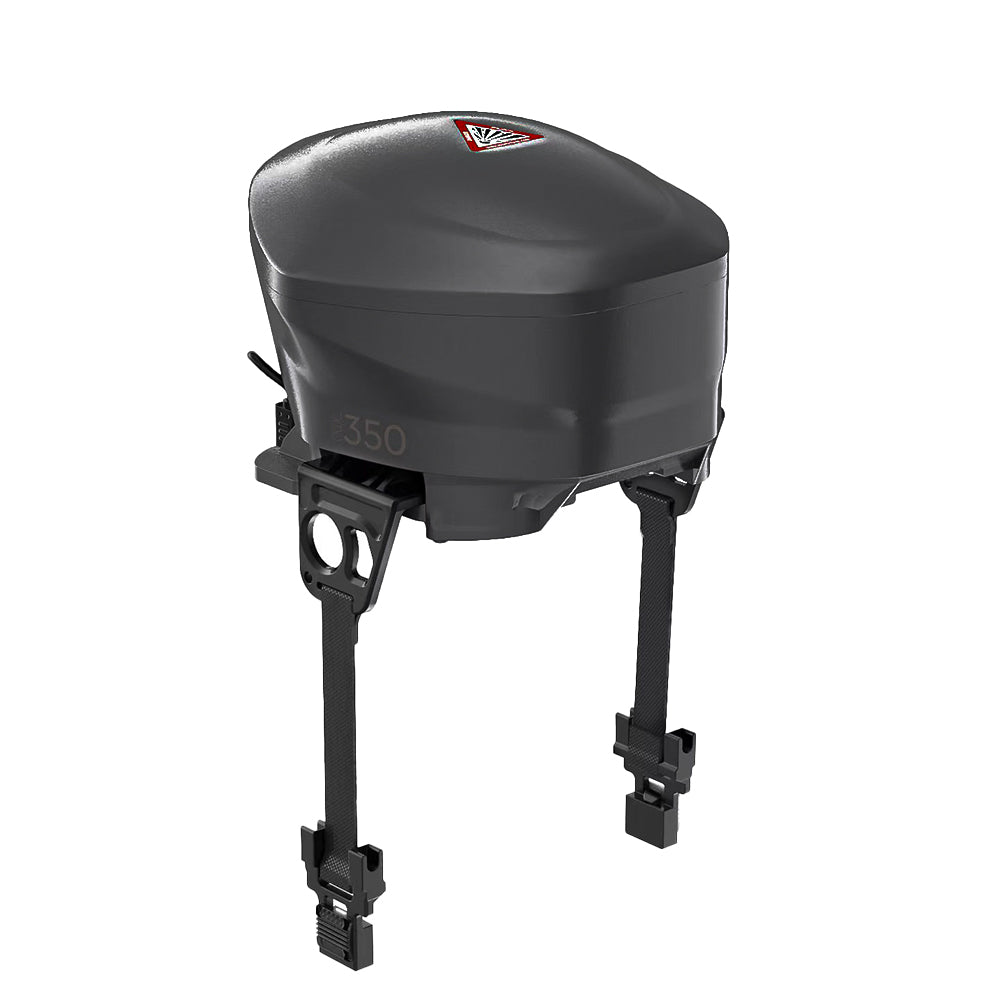

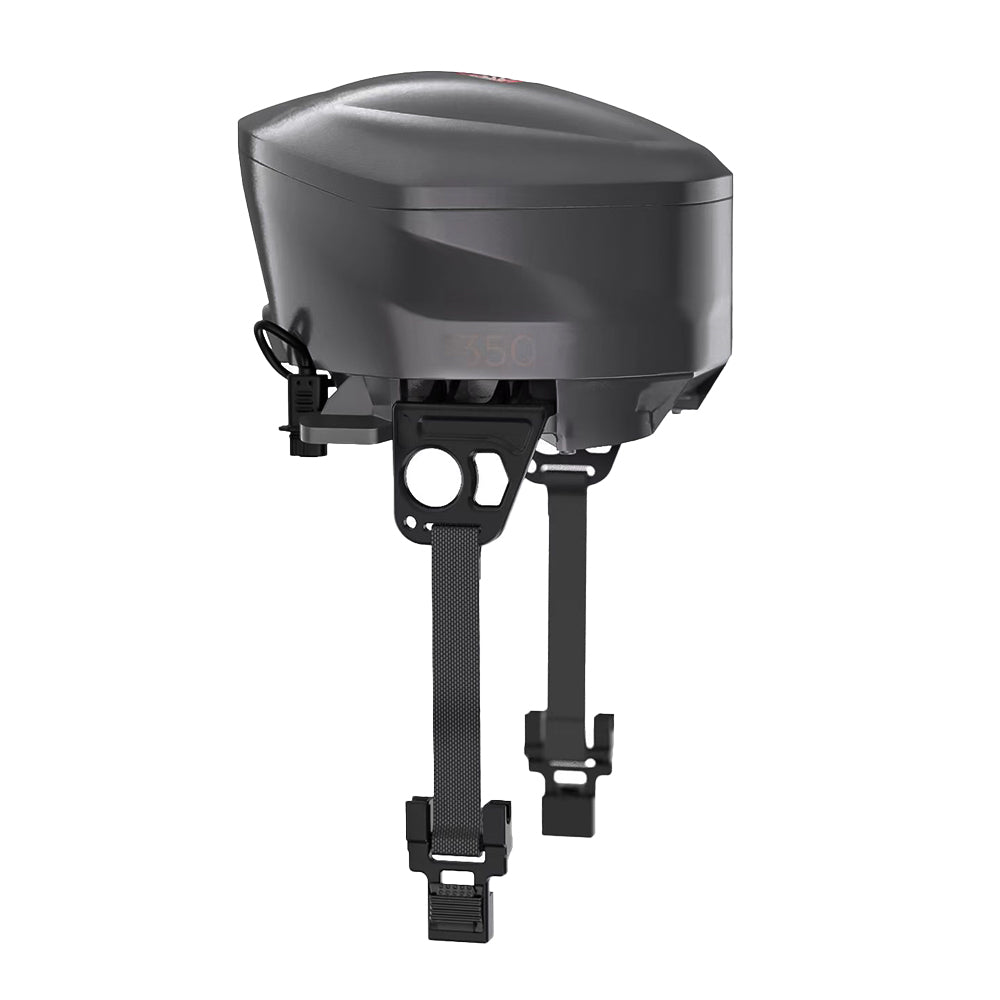

OWL Drone Parachute for DJI M350 RTK
OWL Drone Parachute for DJI M350 RTK
OWL Drone Parachute for DJI M350 RTK
OWL Drone Parachute for DJI M350 RTK
OWL Drone Parachute for DJI M350 RTK

FLYFIRE

OWL Drone Parachute for DJI M350 RTK

Sale price€3.445,95 EUR
FTS:Without FTS
Quantity:
New advantages of M350 compared with M300:

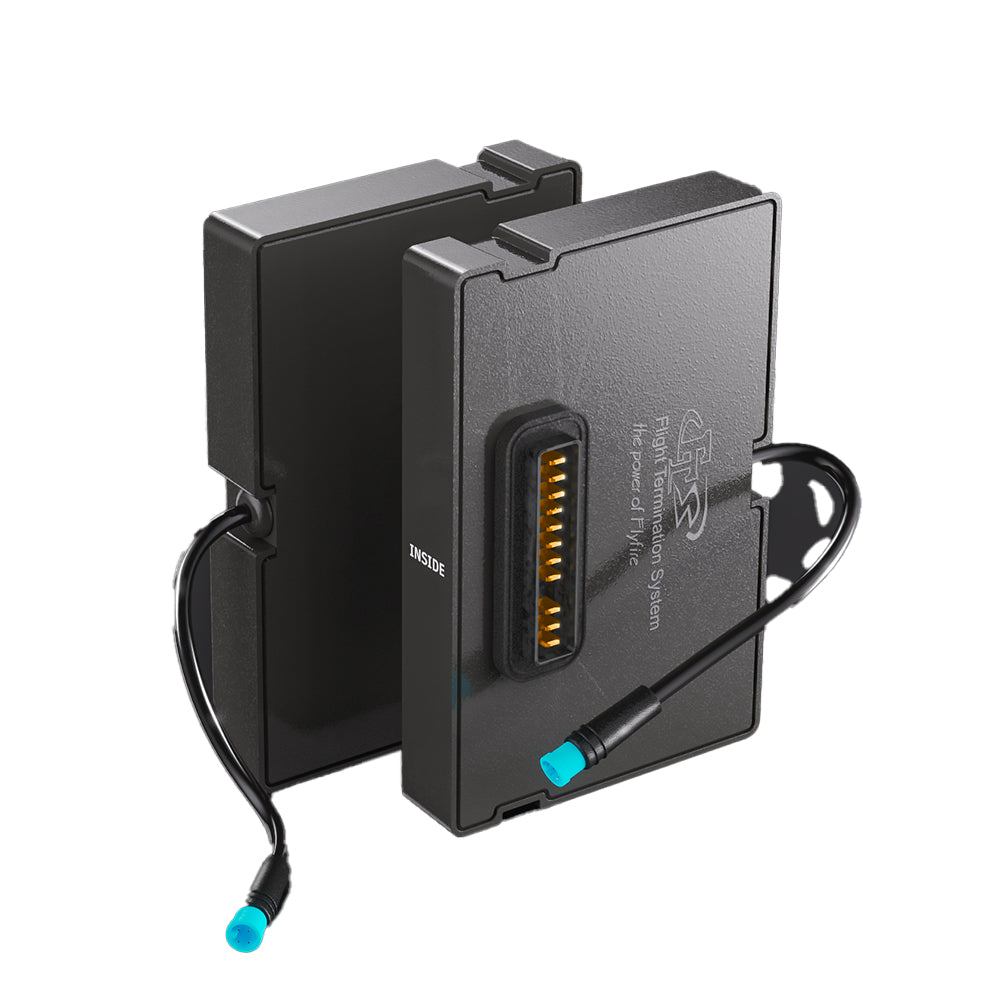

①The new M350 provides internal and external Flight Terminal System(FTS)
②The hanger does not need to dismantle the original screws of the drone arm
③Mainboard optimization, less heat generation, lower power consumption, more accurate data collection, and improved stability
④ The internal structure is optimized, and the hardware reliability is greatly improved
⑤ The software algorithm is updated, the calculation speed is faster, the gesture recognition is more accurate, and the parachute will be deployed more timely

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Shipping & Returns Warranty Secure Payment

The OWL-M350 parachute has been upgraded again. The OWL-350 has a new APS 3.0 intelligent parachute opening algorithm, which deeply integrates DJI flight platform sensor data to provide all-round
three-dimensional situational awareness, safe flight companionship, and worry-free operation. Work together to protect airspace security and promote the development of the drone industry.

APS 3.0 Parachute opening algorithm

After accumulating algorithms from the first two generations, we have used DJIM350 drones equipped with parachutes to conduct hundreds of actual flight tests. Through continuous optimization of iterative algorithms, the parachutes have stronger situational awareness capabilities, and APS3.0 came into being.

*Flyfire engineers perform field test flight tests on real aircraft to check and adjust software parameters.

The APS3.0 system connects to the aircraft through the DJI PSDK interface, and is equipped with dual sensors built into the parachute. The parachute aircraft data is collected to comprehensively judge the flight attitude. The APS 3.0 parachute opening scoring algorithm has been optimized to increase sensor accuracy by 30%. UAV sensor data can be integrated to quickly determine the time to start a business. When a crisis occurs: millisecond power outage-stop propeller-open parachute.

The power-off function is to cut off the connection between the motor and the power supply through the DJI flight control software to achieve the purpose of stopping.

Safety and redundancy guarantee - never-ending data collection

The OWI-M350 parachute sensor adopts a redundant design to cope with various complex operating environments. When one set of sensors fails, another set of sensors can seamlessly replace the data link at the same time, so that the parachute can continue to accurately identify the flight status of the drone and ensure the safety of the drone.

Top umbrella opening algorithm logic

The OWL-350 parachute is upgraded to the APS 3.0 parachute opening algorithm, which integrates DJI drone flight sensor data to accurately identify - falling, speeding, rolling, spinning, impact, blade vibration, etc., and accurately determines the drone through the central processor In the event of loss of control, choose the best time to stop the paddle and open the umbrella to protect the safety of personnel and property.

The flyfire central processor adopts industrial-grade chips, which is stable and reliable.

Keep informed of work status at any time

When the OWL-M350 parachute is used with a drone, the pilot can directly learn the current working status of the parachute by observing the parachute indicator light, which is divided into ground stationary mode, ascending mode, and alert mode.

Static mode: green light is always on, parachute is normal, waiting to take off

Ascent mode: green light flashes, parachute is normal, altitude is rising

Alert mode: Purple is always on, the parachute automatically opens and the parachute is on alert.

The warning height is 15 meters and above. The umbrella will not be opened below the warning height. The height below 15 meters does not ensure that the umbrella cloth is fully deployed to achieve the ideal slow-fall effect.

Parachute built-in power supply

The OWL-350 parachute has a built-in battery. If the PSDK data cable is accidentally disconnected during flight and the main power supply of the parachute fails, the OWL-350 main control will immediately switch to the backup power supply to ensure that the parachute can still meet the 30-minute battery life after losing connection with the drone, giving you Safety on the return journey.

Crash landing speed 3.5m/s
Contact kinetic energy converted to 55 joules
Equivalent to a free fall of DJI M350 from a height of 0.7 meters

Complete umbrella opening warning system

The parachute design adopts international standards. After the parachute is opened, two high-power buzzers at the tail will sound immediately to warn pedestrians on the ground to avoid the parachute.

New racking system

The new generation parachute adopts a newly designed aluminum alloy buckle holder, which eliminates the need to disassemble and assemble the drone arm screws. The structure is stronger and the original shape of the drone is not damaged to the maximum extent; allowing you to equip the parachute efficiently and conveniently.

APS updates

flyfire will provide continuous after-sales maintenance and software updates to provide technical support to consumers. Software upgrades will bring users the latest APS parachute opening software version, allowing the product and drones to achieve higher technological integration and save flight accidents.

The OWL-M350 parachute has been upgraded again. The OWL-350 has a new APS 3.0 intelligent parachute opening algorithm, which deeply integrates DJI flight platform sensor data to provide all-round three-dimensional situational awareness, safe flight companionship, and
worry-free operation. Work together to protect airspace security and promote the development of the drone industry.

APS 3.0 umbrella opening algorithm

After accumulating algorithms from the first two generations, we have used DJIM350 drones equipped with parachutes to conduct hundreds of actual flight tests. Through continuous optimization of iterative algorithms, the parachutes have stronger situational awareness capabilities, and APS3.0 came into being.

*Flyfire engineers perform field test flight tests on real aircraft to check and adjust software parameters.

The APS3.0 system connects to the aircraft through the DJI PSDK interface, and is equipped with dual sensors built into the parachute. The parachute aircraft data is collected to comprehensively judge the flight attitude. The APS 3.0 parachute opening scoring algorithm has been optimized to increase sensor accuracy by 30%. UAV sensor data can be integrated to quickly determine the time to start a business. When a crisis occurs: millisecond power
outage-stop propeller-open parachute.

The power-off function is to cut off the connection between the motor and the power supply through the DJI flight control software to achieve the purpose of stopping.

Safety and redundancy
guarantee - never-ending data collection

The OWI-M350 parachute sensor adopts a redundant design to cope with various complex operating environments. When one set of sensors fails, another set of sensors can seamlessly replace the data link at the same time, so that the parachute can continue to accurately identify the flight status of the drone and ensure the safety of the drone.

Top umbrella opening algorithm logic

The OWL-350 parachute is upgraded to the APS 3.0 parachute opening algorithm, which integrates DJI drone flight sensor data to accurately identify - falling, speeding, rolling, spinning, impact, blade vibration, etc., and accurately determines the drone through the central processor In the event of loss of control, choose the best time to stop the paddle and open the umbrella to protect the safety of personnel and property.

The flyfire central processor adopts
industrial-grade chips, which is stable and reliable.

Keep informed of work status
at any time

When the OWL-M350 parachute is used with a drone, the pilot can directly learn the current working status of the parachute by observing the parachute indicator light, which is divided into ground stationary mode, ascending mode, and alert mode.

Static mode: green light is always on, parachute is normal, waiting to take off

Ascent mode: green light flashes, parachute is normal, altitude is rising

Alert mode: Purple is always on, the parachute automatically opens and the parachute is on alert.

The warning height is 15 meters and above. The umbrella will not be opened below the warning height. The height below 15 meters does not ensure that the umbrella cloth is fully deployed to achieve the ideal slow-fall effect.

Parachute built-in power supply

The OWL-350 parachute has a built-in battery. If the PSDK data cable is accidentally disconnected during flight and the main power supply of the parachute fails, the OWL-350 main control will immediately switch to the backup power supply to ensure that the parachute can still meet the 30-minute battery life after losing connection with the drone, giving you Safety on the return journey.
